Pneumatic Tools

CP-724H 3/8" Extra Heavy Duty / CP-726H 1/2" Mini Impact Wrench

  • Differential regulator allows the operator to match the required power to the job
  • Improved oil bath DYNA-PACT clutch delivers higher performance and extended durability
  • Integral 360° air inlet swivel keeps air hose from being teisted and kinked
Model No.  Square drive
in
Working Torque Range
ft lbs
Maximum Torque @ 90psi reverse
ft lbs
Blows per minute  Free Speed
rpm
Weight
lb
CP724H  3/8 40-170 200 1680 8500 3.1
CP726H  1/2 40-170 200 1800 6800 3.1


CP-7733 / CP-7733-2 1/2" Extra Heavy Duty Impact Wrench

  • Patented clutch provides smooth operation and extreme durability
  • Comfort and control with new ergonomic grip and trigger
  • Low air consumption and high torque makes this tool the most efficient in its class
  • Packed with power and speed, this economical 1/2' impact wrench is the right tool for general automotive service, body shop, farm and light truck work.
Model No. Square drive
in
Working Torque Range
ft lbs
Maximum Torque @ 90psi reverse
ft lbs
Blows per minute  Free Speed
rpm
Weight
lb
CP7733  1/2 25-400 550 1300 7000 5.6
CP7733-2  1/2 25-400 550 1300 7000 5.85


CP-797 / CP-797-6 1" Extra Heavy Duty Impact Wrench

  • Long known as the workhorse of the truck tire industry
  • Rocking dog clutch for smooth operation and extreme durability
  • Teasing throttle for easy bolt starting
  • Convenient reverse valve for easy directional changes
  • Choice of professional mechanics for high volume tire work on trucks, buses and heavy equipment
Model No.  Square drive
in
Working Torque Range
ft lbs
Maximum Torque @ 90psi reverse
ft lbs
Blows per minute  Free Speed
rpm
Weight
lb
CP797  1 150-900 1400 1080 4200 27
CP797-6  1 150-900 1400 1080 4200 29.75


CP-828 3/8" / CP-828H 1/2" Heavy duty ratchet

  • Features CP's new anti-slip head design which virtually eliminates slippage while reducing the potential for heat build-up, even in long run downs
  • Compact, yet packed with power and speed
Model No.  Square drive
in
Working Torque Range
ft lbs
Maximum Torque @ 90psi reverse
ft lbs
Free Speed
rpm
Length
in
Weight
lb

CP828  3/8 10-50 50 150 10 2.4
CP828H  1/2 10-50 50 150 10 2.4


CP-7830 3/8" / CP-7830H 1/2" Super Heavy duty ratchet

  • CP's new high powered ratchet offers the Most Torque at 90 ft.-lbs. 190 RPM
  • Aircraft quality aluminum for lightweight durability and great balance.
  • Only weighs 2.7 lbs.
  • Features CP's new anti-slip head design which virtually eliminates slippage while reducing the potential for heat build-up, even in long run downs
  • Premium tool for brake work, transmission and engine work when you need extra torque
Model No.  Square drive
in
Working Torque Range
ft lbs
Maximum Torque @ 90psi reverse
ft lbs
Free Speed
rpm
Length
in
Weight
lb
CP7830  3/8 10-90 90 190 12 2.7
CP7830H  1/2 10-90 90 190 12 2.7


CP-869-p heavy duty vertical polisher

  • 'Flex-edge' polishing pad to help eliminate scorching
  • Built-in air regulator
  • Muffled rear exhaust
  • Excellent for buffing and polishing fleat and contoured surfaces
Model No.  Type of sander/ polisher  Pad size diameter
in
Free Speed
rpm
Weight
lb
CP869P  Angle Polisher 8 2500 6.5


CP-854 4" heavy duty Angle Grinder

  • Powerful .6 hp high performance motor for fast, efficient grinding in tight quarters
  • Aluminum alloy housing is rugged yet lightweight for maximum operator comfort
  • Spiral bevel gearing in angle head provides extended life and smooth low vibration
  • Excellent for weld preparation and smoothing, rust removal, deburring and blending of steel, cast iron and aluminum
Model No.  Type of grinder   Collet/ Spindle size
in
Wheel size
in
Free Speed
rpm
Length
in
Weight
lb
CP854  Angle Grinder 3/8-24 4 12000 9 3.75
CP854E  Angle Grinder 10mm 5 12000 9 3.75


CP-785 3/8' General Duty Drill

  • Powerful energy efficient air motor resists stalls
  • Triple idler planetary gearing for smooth operation and extended tool life
  • Handle exhaust reduces noise and directs air away from work area
  • Ideal for accessory and air conditioner installation, engine work and auto body repair
Model No. Chuck size
in
Spindle size
in
Free Speed
rpm
Length
in
Weight
lb
CP785  3/8 3/8-24 2400 7 2.25
CP785H  1/2 3/8-24 500 7.75 3


CP-883 / CP-884 Air Hydraulic Riveter

  • Vacuum assist system designed for greater efficiency in downward riveting
  • Cylinder cap with storage area for spare nose pieces
  • Universal air inlet swivel to allow greater maneuverability
  • Three piece jaw set designed from the highest quality materials
  • Rubber boot protects tool and work surface
  • Comes complete with 1/8', 5/32' and 3/16' nose pieces
Model No.  Traction Power
lbf
Rivet Capacity
in
Stroke Length
in
Weight
lb
CP883  1895 3/16 11/16 4
CP884  3960 1/4 7/8 5.5



CP-9107 Mini Die Grinder


CP-3050 Die Grinder

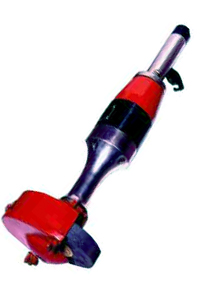

CP-3140-B Heavy Duty Grinder


CP-319-A Grinder / Vertical Sander



Grinders

» Die Grinders

Model Free speed
rpm
Spindle Thread Size Collets Capacity
mm
Wheel Capactiy Ø X width
mm
Approx. Weight
kgs
Overall Length
mm
Outside dia.
mm
Air Inlet
CP-9107* 3500 --- 6 --- 0.45 124 35 Rc 1/4"
CP-3050N-21000** 21000 M10 6 40 x 20 2.5 317 51 Rc 3/6"
CP-3050N-18000** 18000 M10 6 50 x 20 2.5 317 51 Rc 3/6"
CP-3050N-15000** 15000 M10 6 56 x 20 2.5 317 51 Rc 3/6"
CP-3050N-12000** 12000 M10 6 76 x 20 2.5 317 51 Rc 3/6"
CP-3050N-8000** 8000 M10 6 76 x 20 2.5 317 51 Rc 3/6"

* Standard equipment : 6mm Collet Stock Code D 7608 501 Optional equipment : 1/4* Collet Stock Code D7602 511
** Standard equipment : 6mm Collet Stock Code Z 9568 520 Optional equipment : 1/4* Collet Stock Code Z 9579 520

Note :

  1. While ordering CP-3050, please specify, whether you need wheel or collet. Unless specified 21000 & 18000 rpm are supplied with 6mm collet and 15000, 12000 and 8000 rpm are supplied with the wheel guards.
  2. Mounted point or grinding wheel is not in the standard scope of supply.

» Heavy Duty Grinders

   Model Free speed Spindle Thread Size Wheel Capacity Ø X width Approx. Weight Overall Length Outside dia. Air Inlet
  rpm   mm kgs mm mm
   CP-3140-B-6000 6000 M16 150 X 25 5.2 535 89 Rc 1/2"
   CP-3220-S-5800 5800 M16 150 X 25 6.8 603 89 Rc 1/2"

» Vertical Grinders & Sanders

   Model Free speed Spindle Thread Size Wheel Capacity Ø X width Approx. Weight Overall Length Air Inlet NPTF
  rpm   mm kgs mm
   CP-319AG- 6000 Grinder 6" 6000 M16 150 Resinoid cup 6.2 187 Rc 1/2"
   CP-319AS- 6000 Sander 7" 6000 M16 180 coated disc 6.2 187 Rc 1/2"
   CP-319AS- 6000 DCD Grinder 9" 6000 M16 230 DCD 6.2 187 Rc 1/2"





Rammers & hammers

» Heavy Duty Chipping Hammers / Sand Rammers

CP-4123 Chipping Hammer CP-4003 Sand Rammer
Model Blow per miniute Stroke Approx. Weight
kgs
Overall Length
mm
Air Inlet NTPF Type of Handle Standard Equipment
CP-4123-2H 2400 50.8 6.0 327 RC 1/2" Pistol Grip
CP-4123-3H 1920 76.2 6.5 378 RC 1/2" Pistol Grip
CP-4711-LYRA 850   4.8 475 RC 1/4" Straight 63.5 mm dia. rubber butt
CP-4003-LYRA 800   11.8 1156 RC 3/8" Straight 73.0 mm dia steel but

» Weld Flux Chipper / Needle Scalar

CP-455-L Weld Flux Chipper CP-455-LNS Needle Scalar

Model

Blows per minute

Approx. Weight
kg

Overall Length
mm

Air inlet Connection

Type of handle

CP-455L

4200

2

257

Rc 1/2"

Straight

CP-455LNS 4200 3.1 450 Rc 1/2" One set of 19 hardened alloy steel needles, Ø.5 mm

» Heavy Duty Riveters

CP-4689 Riveter
Model Riveting Capacity in Steel
mm
Blows per minute Approx. Weight
kg
Overall Length
mm
Air inlet Size Type of handle Standard Equipment
CP-4689-PUBAR 20 1500 7.6 430 Rc 1/2" Pistol grip Snap Clip Retainer
CP-4689-PUDAR 24 1320 8.6 470 Rc 1/2" Pistol grip Snap Clip Retainer
CP-4689-PUGAR 30 1200 9.4 523 Rc 1/2" Pistol grip Snap Clip Retainer


HOISTS

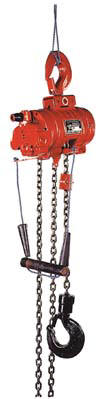

CP 1100 series high speed Air Hoists are portable & light weight. These hoists have been conceived for a broad range of applications covering fast moving production operations in hazardous environments, applications where space is limited for material handling, production and assembly operations in medium to heavy manufacturing. These hoists are built to stay on the job even under the toughest working conditions.

CP-1100 Hoists
  Model Rated Capacity
kgs
Lifting Hook Speed
m/min
Lift
(Hook Travel)
m
Approx Weight
kgs
Type of Control
 CP-1100-500 500 15.3 4.6 16.8 Pull cord
 CP-1100-500R 500 15.3 4.6 18.6 Pendant
 CP-1100-1000 1000 6.4 4.6 22.7 Pull cord
 CP-1100-1000R 1000 6.4 4.6 24.5 Pendant
Air Inlet Connection: 3/8" NPTF Male Swivel


Legris - Air Service Units

Legris offers an extensive range of filters, regulators and lubricators, including individual units and combinations.

Filters

  • eliminate dust and coagulation from compressed air
  • series standard and mini
  • drain: manual as a standard, semi automatic as and option
  • choice of filter elements 5µ or 40µ
  • high quality bowl designed for long service life



Regulators

  • allow easy adjustment of air pressure
  • series standard and mini
  • 0,1% accuracy of pressure control
  • can be installed in any position
  • technology: piston type regulation

Lubricators

  • fog style lubrication for extended life of equipment
  • series standard and mini
  • refilling of oil without stopping the air line
  • easy adjustment of oil delivery volume

Spare Parts

  • pressure guages
  • sinterned bronze filter elements
  • filter bowls and lubricator bowls
  • spacer blocks
